AVA adaptiveSense® Touchless Urinal Sensor Flusher
The AVA adaptiveSense® Touchless Urinal Sensor Flusher is an advanced automatic flushing solution built on Time-of-Flight (ToF) sensing technology. Compared with conventional infrared sensor systems, adaptiveSense® offers more precise distance measurement, enhanced detection stability, and intelligent sensing that automatically adapts to a wide range of installation environments.
Engineered for commercial washrooms, hotels, hospitals, airports, office buildings, and other public facilities, the system delivers reliable hands-free operation while helping reduce false activations and improve water efficiency.
With the programmable adaptiveSense® platform, installers can easily configure sensing range, flush duration, sensitivity, and operating modes without modifying the firmware. A single hardware platform can therefore meet the requirements of various commercial restroom projects.
Production Details
1. Advanced ToF Distance Sensing
The AVA Touchless Urinal Flusher utilizes advanced Time-of-Flight (ToF) technology to achieve highly accurate, millimeter-level distance measurement. Unlike traditional infrared urinal flushers, the adaptiveSense® system delivers stable performance regardless of lighting conditions, surface colors, or surrounding environments, greatly reducing unwanted flushes.
The adjustable sensing range and programmable flushing parameters allow the system to be optimized for different installation scenarios, making it an ideal Automatic Urinal Flusher for commercial applications that require dependable performance, water conservation, and long-term reliability.
SEO Keywords: Urinal Sensor Flusher, Touchless Urinal Flusher, Automatic Urinal Flusher, ToF Sensor Technology, Touchless Flush System
2. Simplified Installation & Serviceability

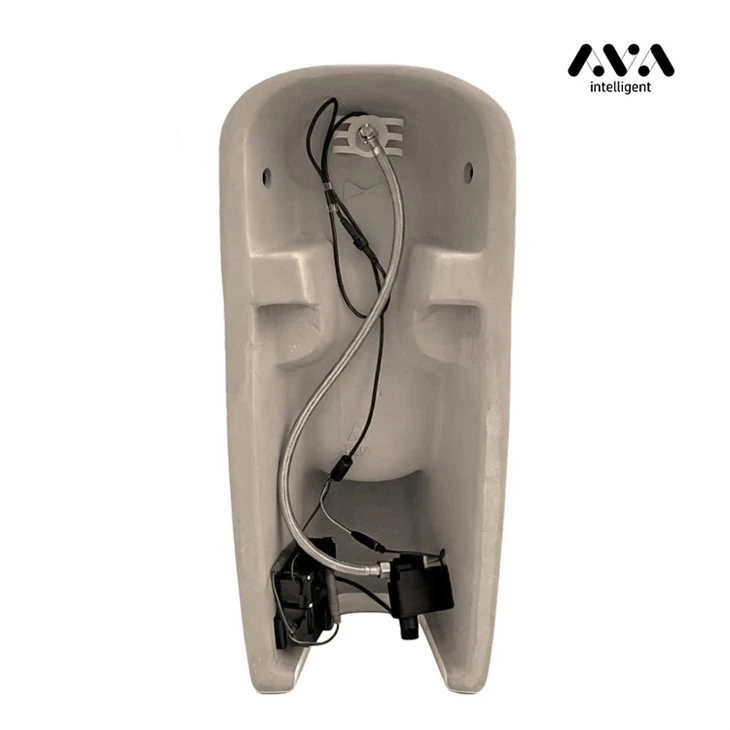

Designed with maintenance efficiency in mind, the modular construction allows technicians to quickly access key components such as the solenoid valve and power module without removing the urinal from the wall. This design significantly reduces maintenance time and service costs.
Available with both battery-powered and DC-powered configurations, the Commercial Urinal Flusher also supports adjustable flush volume, automatic hygiene flushing, and multiple programmable operating modes. These features make it a versatile Sensor Urinal Flush Valve suitable for airports, hotels, healthcare facilities, office buildings, and other high-traffic commercial restrooms.
SEO Keywords: Commercial Urinal Flusher, Sensor Urinal Flush Valve, Automatic Flush Valve, Water Saving Urinal Flusher, Touchless Restroom Solutions

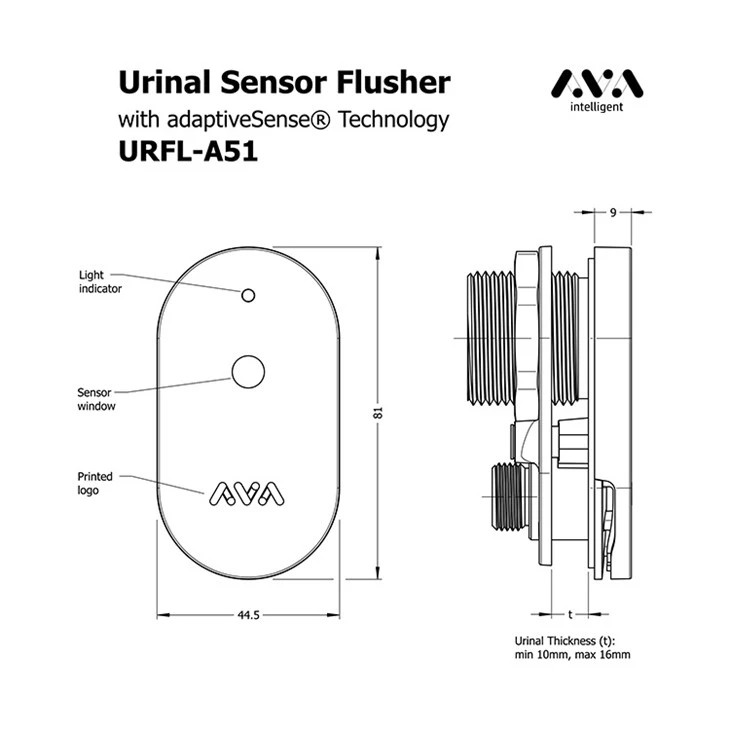

Product Specification
| Item | Specification |
|---|---|
| Product Name | AVA adaptiveSense® Urinal Sensor Flusher URFL-A511 |
| Sensor Technology | Time-of-Flight (ToF) |
| Detection Method | Distance Measurement |
| Power Supply | 4 × AA Alkaline Batteries / 6V DC |
| Operating Current | ≤44 μA |
| Detection Distance | 40 cm / 50 cm / 60 cm (Default: 50 cm) |
| Flush Volume | 0.3L / 0.5L / 0.7L / 1.0L / 1.3L |
| Default Flush Volume | 0.5L |
| Water Pressure | 0.1 – 1.0 MPa |
| Water Inlet | G1/2" |
| Installation Thickness | 9–16 mm |
| Indicator | LED Indicator & Illuminated Logo (selected models) |
| Housing Materials | ABS |
| Available Shapes | Oblong |
| Available Colors | Red |
Products System
Features Summary & Benefyts
Detection Distance
Flush Volume
Overuse Detection (Stadium Mode)
Cleaning Mode
Change Settings Mode
Flushing Flow Regulation
Company introduction
Our Advantages
High-quality chafingdish spring dampers feature a precision-sealed design that effectively prevents moisture and oil from entering the internal core components, avoiding damping failure and rust. Even after sixty of thousands of opening and closing cycles, it maintains stable cushioning performance and has a lifespan of several years, eliminating the need for frequent replacements and significantly reducing operating costs.
The spring damper is adjustable, allowing for flexible adjustment of damping torque and cushioning speed based on the weight and size of the chafingdish lid and the specifications of the pot itself. It is compatible with chafingdish of different materials (stainless steel, ceramic, enamel) and sizes, providing precise fit for everything from small household chafingdish to large commercial double-compartment pots.
FAQ
Q: What sensing technology does the urinal flusher use?
A: It uses AVA's adaptiveSense® platform based on Time-of-Flight (ToF) sensing technology, providing more accurate and reliable detection than traditional infrared sensors.
Q: Can the sensing distance be adjusted?
A: Yes. Users can select 40 cm, 50 cm, or 60 cm detection distances according to installation requirements.
Q: Does it support battery and DC power?
A: Yes. The flusher can operate with either 4 AA alkaline batteries or a 6V DC power supply.
