AVA adaptiveSense® Touchless Urinal Sensor Flusher
The AVA adaptiveSense® Urinal Sensor Flusher is a next-generation touchless flushing solution powered by Time-of-Flight (ToF) sensing technology. Unlike conventional infrared (IR) sensors, adaptiveSense® delivers precise distance measurement, stable performance, and intelligent detection that adapts to different installation environments.
Designed for commercial restrooms, public facilities, hotels, airports, hospitals, office buildings, and other high-traffic applications, the system provides hygienic hands-free operation while reducing false triggering and optimizing water consumption.
The programmable adaptiveSense® platform allows installers to easily adjust sensing distance, flush volume, sensitivity, and operating modes without changing firmware, making one hardware platform suitable for multiple projects.
Production Details
1. Intelligent ToF Sensing Technology
Powered by Time-of-Flight (ToF) Sensor Technology, the AVA Urinal Sensor Flusher delivers highly accurate distance detection with millimeter-level precision. Unlike traditional Infrared Urinal Flushers, the adaptiveSense® platform minimizes false activation caused by ambient light, surface color, or environmental conditions. Adjustable sensing distance and programmable flushing settings make this Touchless Urinal Flusher ideal for commercial restroom projects that demand reliable performance, water efficiency, and long-term stability.
SEO Keywords: Urinal Sensor Flusher, Touchless Urinal Flusher, Automatic Urinal Flusher, ToF Sensor Technology, Touchless Flush System
2. Easy Installation & Maintenance

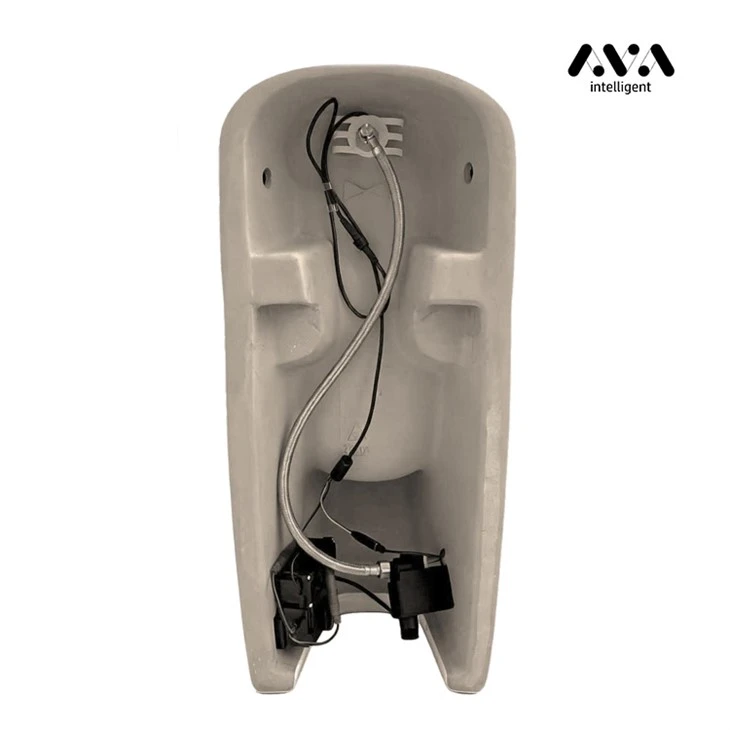

Designed for professional installation, the modular structure allows quick access to the power module and solenoid valve without removing the urinal from the wall, significantly reducing maintenance time. Supporting both battery and DC power options, the Commercial Urinal Flusher also features adjustable flush volume, hygiene auto flush, and customizable operating modes, making it a flexible Sensor Urinal Flush Valve solution for airports, hotels, office buildings, hospitals, and other high-traffic commercial washrooms.
SEO Keywords: Commercial Urinal Flusher, Sensor Urinal Flush Valve, Automatic Flush Valve, Water Saving Urinal Flusher, Touchless Restroom Solutions
Product Specification
| Item | Specification |
|---|---|
| Product Name | AVA adaptiveSense® Urinal Sensor Flusher URFL-A511 |
| Sensor Technology | Time-of-Flight (ToF) |
| Detection Method | Distance Measurement |
| Power Supply | 4 × AA Alkaline Batteries / 6V DC |
| Operating Current | ≤44 μA |
| Detection Distance | 40 cm / 50 cm / 60 cm (Default: 50 cm) |
| Flush Volume | 0.3L / 0.5L / 0.7L / 1.0L / 1.3L |
| Default Flush Volume | 0.5L |
| Water Pressure | 0.1 – 1.0 MPa |
| Water Inlet | G1/2" |

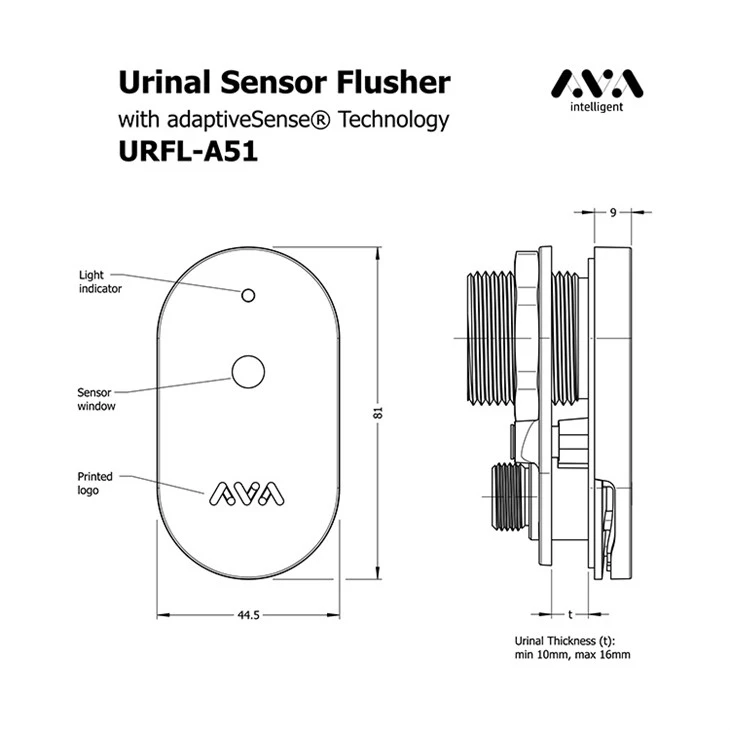

| Installation Thickness | 9–16 mm |
| Indicator | LED Indicator & Illuminated Logo (selected models) |
| Housing Materials | ABS |
| Available Shapes | Oblong |
| Available Colors | Black |
Products System
Features Summary & Benefyts
Detection Distance
Flush Volume
Overuse Detection (Stadium Mode)
Cleaning Mode
Change Settings Mode
Flushing Flow Regulation
Company introduction
Our Advantages
High-quality chafingdish spring dampers feature a precision-sealed design that effectively prevents moisture and oil from entering the internal core components, avoiding damping failure and rust. Even after sixty of thousands of opening and closing cycles, it maintains stable cushioning performance and has a lifespan of several years, eliminating the need for frequent replacements and significantly reducing operating costs.
The spring damper is adjustable, allowing for flexible adjustment of damping torque and cushioning speed based on the weight and size of the chafingdish lid and the specifications of the pot itself. It is compatible with chafingdish of different materials (stainless steel, ceramic, enamel) and sizes, providing precise fit for everything from small household chafingdish to large commercial double-compartment pots.
FAQ
Q: What is a touchless urinal sensor flusher?
A: touchless urinal sensor flusher is an automatic flushing system that detects user presence and activates flushing without physical contact. It improves hygiene, reduces cross-contamination, and helps conserve water in commercial restrooms.
Q: How does the adaptiveSense® ToF technology work?
A: AVA's adaptiveSense® ToF (Time-of-Flight) technology measures distance using light pulses instead of traditional infrared reflection. This provides faster response, higher accuracy, and reliable operation under different lighting conditions.
Q: What are the advantages of ToF sensors over infrared (IR) sensors?
A: Compared with traditional IR urinal sensors, ToF urinal sensor flushers offer more stable detection, fewer false triggers, longer sensing distance, and better performance in bright or reflective environments.
